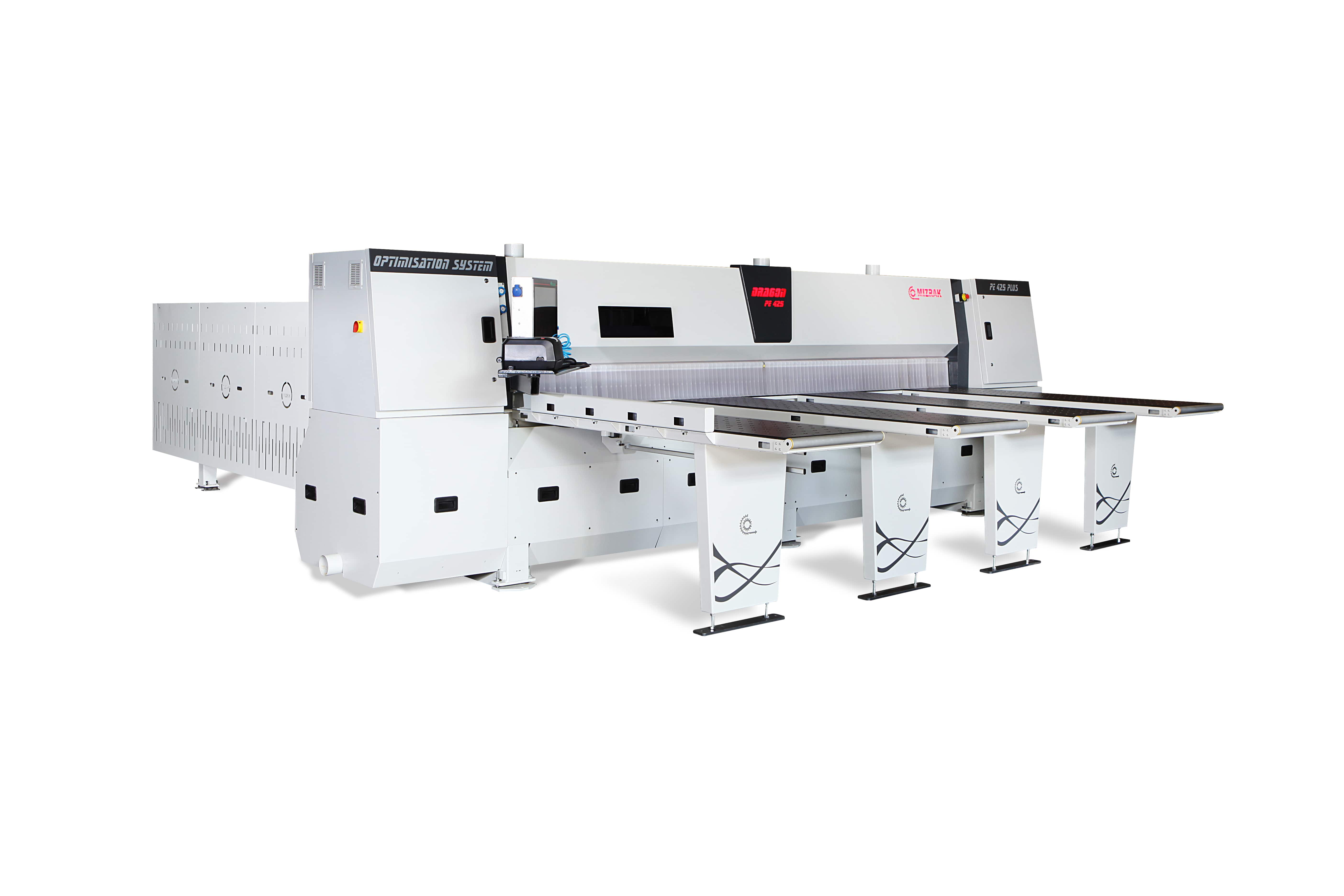

MZK-DRAGON PE42-3 PANEL SAW
4200*4200 PLATE (max 54mm) cutting height optimization program It produces a cutting plan by minimizing wastage calculations.
It works with the simulation program that guides the operator.
Optional manual cutting feature.
Optional single cut feature (in x-axis).
Kopeksper optimization program used.
The up-down movement of the cutting saw is provided by the pneumatic piston.
Ability to automatically adjust cutting speed according to material height.
Pusher group is controlled by servo motor. Advanced bedding system and
Measure errors with induction shaft rack system and double-sided bearing system
minimizes it.
With 2 rollers, linear and rack bearings in the upper pressure group.
to prevent the material from slipping by applying equal pressure on the entire surface of the part Hinders.
Overpressure and pusher air pressure adjustment clock.
SPECIFICATIONS
| Cutting Width |
4200 mm |
| Cutting Depth |
4200 mm |
| Cutting Height |
54 mm |
| Cutting Group Simulation Speed |
MAX 80 M/M |
| Cutting Group Working Speed |
MAX 50 M/M |
| Pusher Group Working Speed |
MAX 50 M/M |
| Cutting Saw Dimensions |
Ø320x4.4mm |
| Scriber Saw Dimensions |
Ø200x4.2mm |
| Cutting Saw Rpm |
5500 Rpm |
| Scriber Saw Rpm |
4000 Rpm |
| Cutting Saw Motor Power |
9 KW |
| Scriber Saw Motor Power |
1.1 KW |
| Cutting Group Motor Power |
2 KW |
| Pusher Servo Motor Power |
2 KW |
| Backing Group Servo Motor Power |
0.75KW |
| Snail Fan Motor Power |
3 KW |
| Cutting Group Dust Suction Pipe Diameter (Bottom Exit) |
Ø120 mm |
| Upper Press Dust Suction Pipe Diameter (Upper Exit) |
Ø100mm |
| Machine Working Space |
56 m² |
| Air Pressure |
6 Bar |
| Main Voltage |
400 V -50 Hz |
| Nominal Current |
50 A |
| Total power |
25 KW/H |
| Machine Dimensions |
6600*8200*1800mm |
| Machine Weight |
6500kg |
